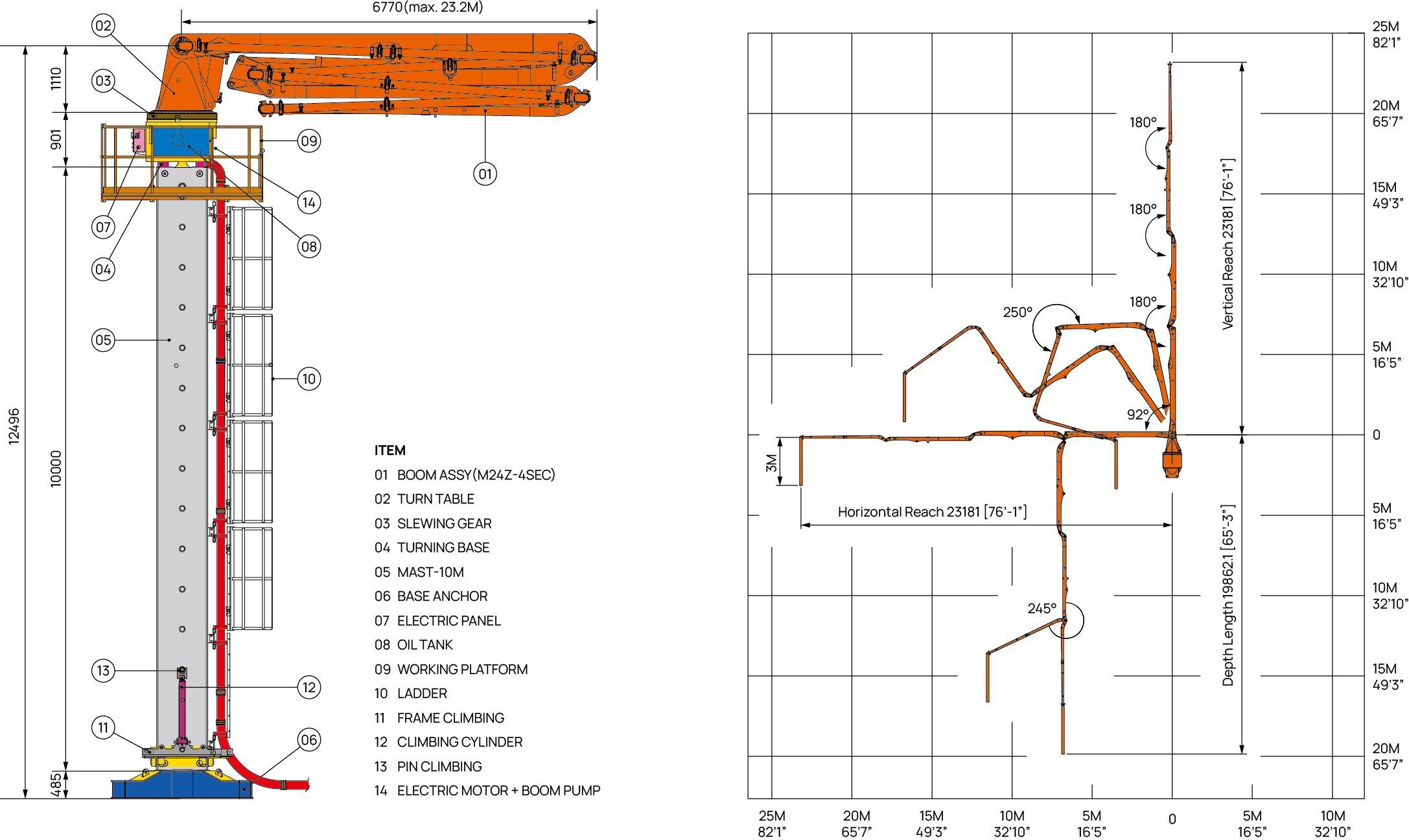

MOMENT [KNm]

Position of boom

Moment(boom side) → +

I

with concrete in pipe-line

→ 480 kNm

II

without concrete in pipe-line

→ 125 kNm

III

 without concrete in pipe-line

 → 14.4 kNm

Total wieght [kg] - boom, table, base(with oil), motor, pump, (+concrete)

In operation 5,800 kg

Out of operation 5,150 kg

Wind-exposed areas [m²]

Position

of boom

Center of gravity distance

remark

I

II

9.2 m²  boom-side

9.2 m²  boom-side

Xg1 = 7.9 m

Xg2 = 2.7 m

Wind surface perpendicular to frontal wind

I / II

III

2.0 m²

7.8 m²

Ys = 0.4 m

Ys = 4.0 m

Exposed area in frontal wind

Absolute altitude [m]

0~8

8~20

20~100

Above 100

W [N/m²]

800

1,280

1,760

2,080

 F = W x A

 F : wind force

 W : lateral thrust due to wind

 A : wind surface area
