플레이싱붐
KB_M28Z
사양


MOMENT [KNm]

Position of boom

Moment(boom side) → +

I

with concrete in pipe-line

→ 600 kNm

II

without concrete in pipe-line

→ 200 kNm

III

 without concrete in pipe-line

 → 32 kNm


Total wieght [kg] - boom, table, base(with oil), motor, pump, (+concrete)

In operation 7,500 kg

Out of operation 6,700 kg


Wind-exposed areas [m²]

Position

of boom

Wind-exposed area

Center of gravity distance

remark

I

II

11.3 m²  boom-side

11.3 m²  boom-side

Xg1 = 9.7 m

Xg2 = 3.8 m

Wind surface perpendicular to frontal wind

I / II

III

2.3 m²

10 m²

Ys = 1.4 m

Ys = 4.2 m

Exposed area in frontal wind

Comment : lateral thrust due to wind is calculated according to DIN 1055

Absolute altitude [m]

0~8

8~20

20~100

Above 100

W [N/m²]

800

1,280

1,760

2,080


 F = W x A

 F : wind force

 W : lateral thrust due to wind

 A : wind surface area



외관도 PDF DOWNLOAD



사양

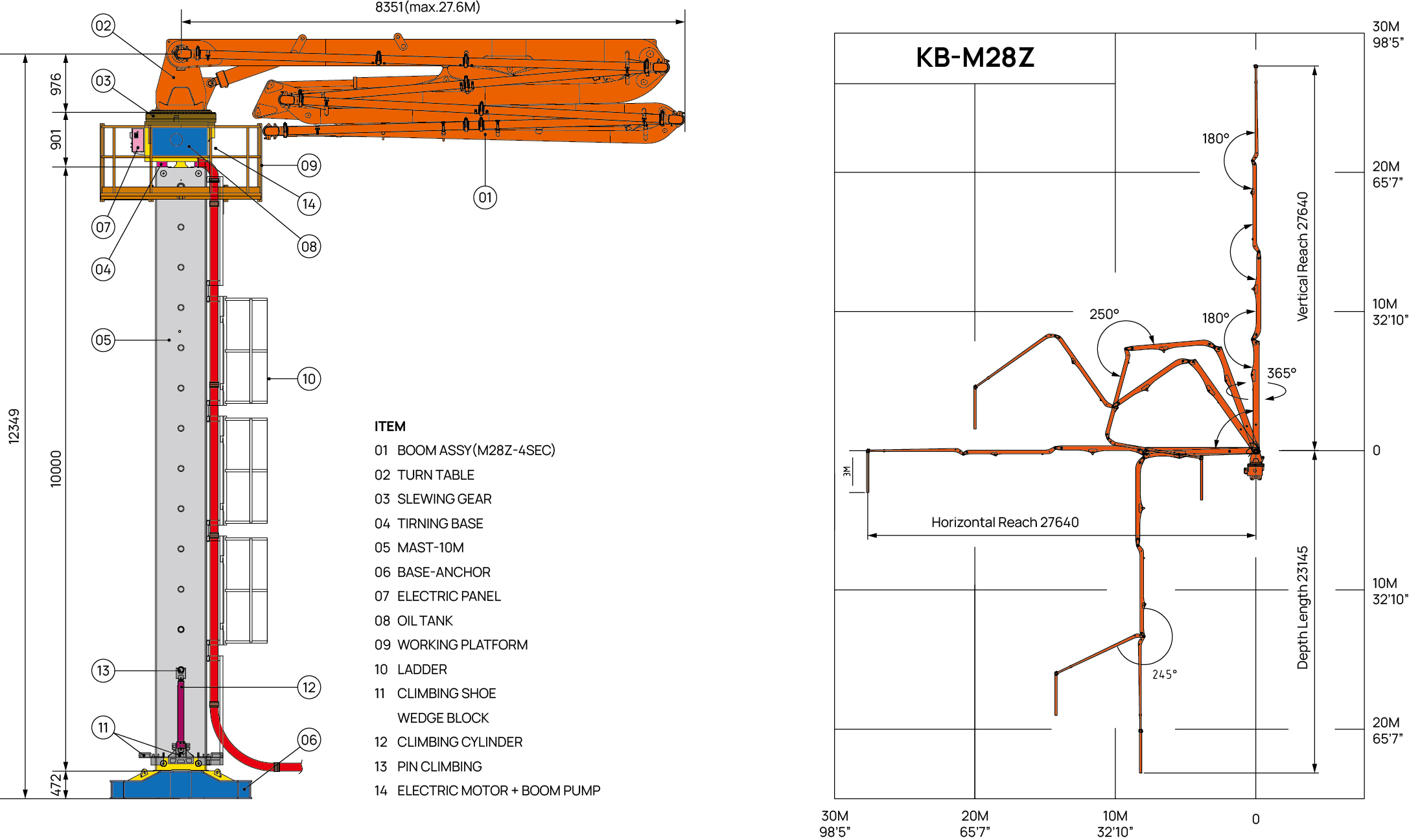

외관도
